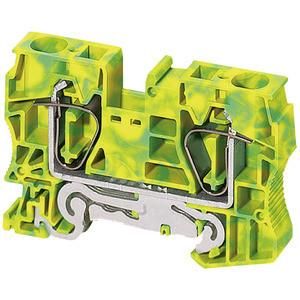

Linergy earthing terminal, 16mm2, single level, 1x1, spring, green-yellow. Series: Linergy - Product or component type: Terminal block - Device short name: TRR - Terminal block type: Protective earthing - Mounting variant: Plug-in - Nominal cross-section: 16 mm - Length: 80 mm - Quantity per set: Set of 50 pieces.
| Property | Value |
| Width/grid dimension: | 12.2 mm |
| Operating temperature: | 130 °C |
| Connectable conductor cross-section, single-wire: | 25 mm |
| Connectable conductor cross-section, stranded: | 16 mm |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 16 mm |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 16 mm |
| Connection position: | top |
| PEN function possible: | no |
| Design of electrical connection 1: | spring-loaded connection |
| Design of electrical connection 2: | spring-loaded connection |
| Number of levels: | 1 |
| Number of terminal points per level: | 2 |
| Color: | green/yellow |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| Height with lowest mounting type: | 51 mm |
| End plate required: | yes |
| Length: | 80 mm |
| Material of the insulating body: | Thermoplastic |
Features
HAB
Linergy 16qmm 1 level 1x1 spring green-yellow
Minimal order
25 pcs
Manufacturer
HAN
NSYTRR162PE
GTIN
3606480532887
Connectable conductor cross-section solid
25 mm
Connectable conductor cross-section stranded
16 mm
Operating temperatur
130°C
Flammability class of the insulating material according to UL 94
V0
Color
Length
80 mm
Mounting type
DIN rail TH35
