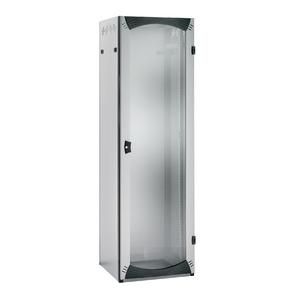

Cable rack, floor standing 47HE W600 D600 fixed 19' glass door R7035. Product series: Actassi VDA - Product or component type: 19' enclosure - Equipment application: Cabling - Product specific application: for the protection of network connection equipment, for the mounting of 19' equipment - Color tone: Panels : light gray (RAL 7035) , Top and bottom : light gray (RAL 7035) , Door : light gray (RAL 7035) , Structure : dark gray (RAL 7011) .
| Property | Value |
| Color: | gray |
| Number of height units (U): | 47.0 |
| Height: | 2200.0 mm |
| Width: | 600.0 mm |
| Depth: | 600.0 mm |
| Number of doors: | 1.0 |
| Type of ventilation: | passive |
| Protection class (IP): | IP20 |
| With front door: | yes |
| Design of the profile rail: | without |
| Material: | steel |
| Can be dismantled: | yes |
| RAL number: | 7035.0 |
| With earthing: | no |
| Surface finish: | powder-coated |
| With roof sheet: | yes |
| With side walls: | yes |
| Design: | with fixed frame |
| Grid dimension: | 482.6 mm (19 inches) |
| Max. Load capacity: | 400.0 kg |
| Protection class (NEMA): | 1 |
Features
Number of height units (HE)
47.0
HAB
47HE W600 D600 fixed 19' door R7035
Manufacturer
HAN
NSYVDA47U66B
GTIN
3606480170737
Version
With fixed frame
Surface finish
Powder coated
Width
600.0 mm
Color
Height
2200.0 mm
RAL number
7035.0
IP protection)
IP20
Protection class (NEMA)
1
Depth
600.0 mm
Material
Steel
