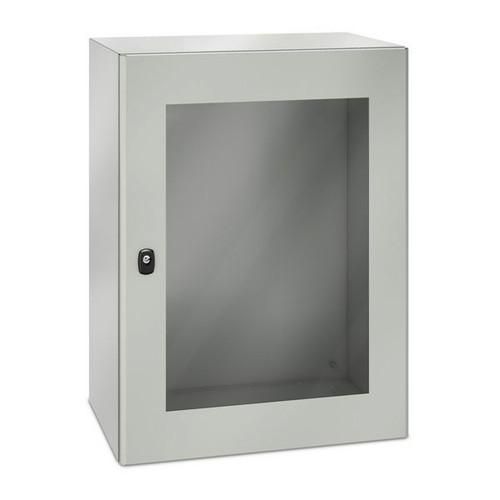

Spacial VDM wall enclosure (one-piece enclosure body). Enclosure depth 400 mm. Compact enclosure for electronics and networks. 19-inch swing frame, glazed door. 16 units (19 inches). 3 mm double-bit lock. Standard flange plate. Steel housing and frame. Grey RAL 7035. Standard IEC 62208.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 800.0 mm |
| Width: | 600.0 mm |
| Depth: | 400.0 mm |
| Color: | gray |
| Protection class (IP): | IP66 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | no |
| With viewing door: | yes |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | no |
| Impact resistance: | IK08 |
| Sloped roof: | no |
| Suitable for wall installation: | yes |
| Material quality: | other |
| Protection class (NEMA): | 4X |
| Freestanding: | no |
| Suitable for wall mounting: | yes |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load of the housing/cabinet according to IEC 62208: | 3.0 N |
Features
HAB
Wall mounting VDM 16HE swing frame D400
Manufacturer
HAN
NSYVDM16U4P
GTIN
3606480174544
Surface finish
Powder coated
Width
600.0 mm
EMC version
No
Color
Suitable for outdoor installation
No
Suitable for wall mounting
Yes
Height
800.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK08
IP protection)
IP66
Protection class (NEMA)
4X
Depth
400.0 mm
Material
Steel
Material quality
Other
