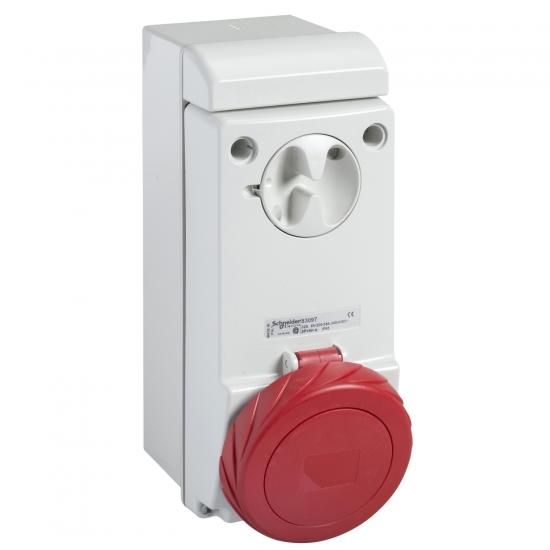

Locked wall socket, 63A, 3p+E, 380-415 V AC, IP65. Product series: PratiKa - Product or component type: interlocked socket - Device short name: Unika socket - Plug/socket category: low voltage - Description of poles: 3P+E - Network connection: AC - Output standard: industrial.
| Feature | Value |
| IEC current: | 63.0 A |
| Number of poles: | 3.0 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Protection: | without |
| Voltage according to EN 60309-2: | 380-415 V (50+60 Hz) red |
| Time position: | 6.0 h |
| Identification color: | red |
| Protection class (IP): | IP65 |
| With residual current device: | no |
| Material of the housing: | plastic |
| Military version: | no |
| Design of the switch: | Auxiliary contacts |
| Design: | Lower part and upper part |
Features
HAB
PKB63P534
Manufacturer
HAN
PKB63P534
GTIN
3303432448196
Version
Bottom and top
Design of the switch
Auxiliary contacts
IEC current
63.0A
Identification color
Red
Military version
No
Number of poles
3.0
IP protection)
IP65
Voltage according to EN 60309-2
380-415 V (50+60 Hz) red
Time position
6.0 hours
Housing material
Plastic
