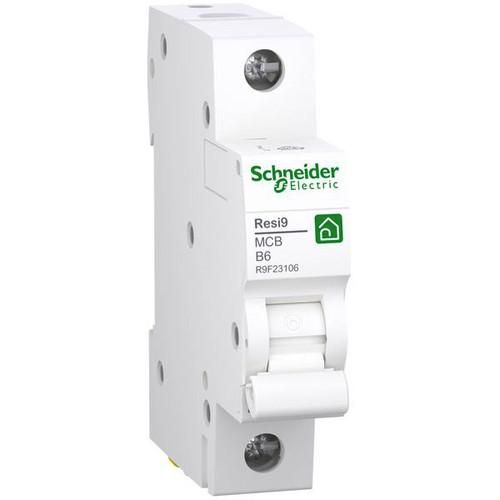

Miniature circuit breaker Resi9. 1 pole, 6A, characteristic B. Breaking capacity of 6kA according to IEC/EN 60898-1. Operating voltage (Ue) 230V AC, operating frequency 50/60 Hz. Dual function terminal for cable and fork comb rail on the bottom of the device. Rear top hat rail fastening element on the bottom of the device. Snap action for low-wear switching of the contacts that is independent of the user. Color RAL 9003
| Property | Value |
| Triggering characteristic: | B |
| Rated current: | 6.0 A |
| Rated voltage: | 230.0 V |
| Type of voltage: | AC |
| Frequency: | 50.0 to 60.0 Hz |
| TE: | 1.0 |
| Number of poles (total): | 1.0 |
| Energy limitation class: | 3.0 |
| Additional equipment possible: | no |
| Overvoltage category: | 3.0 |
| Installation depth: | 44.0 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 6.0 kA |
| Pollution degree: | 2.0 |
| Switching neutral conductor: | no |
| Number of protected poles: | 1.0 |
| Flush-mounted installation: | no |
| Rated insulation voltage Ui: | 440.0 V |
| Rated impulse withstand voltage Uimp: | 4.0 kV |
| Ambient temperature during operation: | -25.0 to 60.0 °C |
| Connectable conductor cross-section, stranded: | 1.0 to 16.0 mm² |
| Connectable conductor cross-section, single-wire: | 1.0 to 25.0 mm² |
| Explosion-proof: | no |
Features
Flush-mounted installation
No
HAB
Resi9 1P B6A characteristic 6kA
Manufacturer
HAN
R9F23106
GTIN
3606489590062
Connectable conductor cross-section solid
1.0 to 25.0 mm²
Connectable conductor cross-section stranded
1.0 to 16.0 mm²
Number of protected poles
1.0
Trigger characteristics
B
Rated insulation voltage Ui
440.0V
Rated switching capacity Icn according to EN 60898 at 230 V
6.0kA
Rated voltage
230.0V
Rated impulse withstand voltage Uimp
4.0kV
Rated current
6.0A
Installation depth
44.0 mm
Energy limitation class
3.0
Explosion-proof
No
Frequency
50.0 to 60.0 Hz
Switching neutral conductor
No
Number of poles (total)
1.0
IP protection)
IP20
Voltage type
AC
TE
1.0
Ambient temperature during operation
-25.0 to 60.0 °C
Degree of contamination
2.0
Additional equipment possible
No
Overvoltage category
3.0
