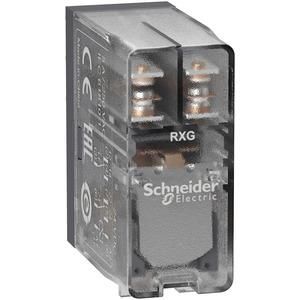

Plug-in interface relay with a width of 13 mm for installation in the plug-in base using robust flat pins. Two relay changeover switches can each be loaded up to 5 A. The relay has a transparent cover through which you can see the switching state of the contacts. There is therefore NO mechanical display or LED. In addition, there are NO test buttons or test levers for the operator to operate, so that the contact change can only be carried out via the control.
| Property | Value |
| Number of contacts as changeover contacts: | 2.0 |
| Number of contacts as normally open contacts: | 0.0 |
| Number of contacts as normally closed contacts: | 0.0 |
| Rated control supply voltage DC: | 24.0 V |
| Type of voltage for actuation: | DC |
| Design of the electrical Connection: | Flat plug connection |
| Drive, polarity: | polarized |
| Height: | 28.0 mm |
| Width: | 13.0 mm |
| Depth: | 29.0 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
| Rated current: | 5.0 A |
| With LED display: | no |
| Material of the contact coating: | other |
| Material of the contact insert: | other |
| Material of the contact: | other |
Features
Complete device with base
No
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB
RXG 2W 24VDC 5A transparent housing
Minimal order
10 pcs
Manufacturer
HAN
RXG25BD
GTIN
3606480689390
Number of contacts as normally open
0.0
Number of contacts as changeover
2.0
Number of contacts as opener
0.0
Design of the electrical connection
Flat plug connection
Width
13.0 mm
Height
28.0 mm
With LED display
No
With removable clamps
No
Rated current
5.0A
IP protection)
IP40
Voltage type for actuation
DC
Depth
29.0 mm
