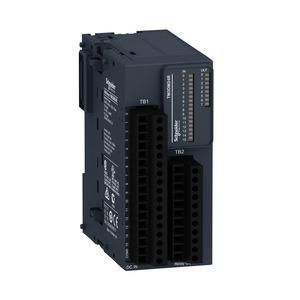

Special features: Modicon TM3 expansion modules are designed with a simple locking mechanism. A bus extension cable is used to distribute data and power when the Modicon TM3 expansion module is connected to the PLC controller.
| Property | Value |
| Number of digital inputs: | 16 |
| Number of digital outputs: | 8 |
| Redundancy capability: | no |
| Output current: | 2 A |
| Design of the electrical connection: | screw connection |
| Type of digital output: | relay |
| Supply voltage for DC: | 24 V |
| Height: | 90 mm |
| Width: | 42.9 mm |
| Depth: | 84.6 mm |
| Type of supply voltage: | DC |
| Type of input voltage: | DC |
| Permissible voltage at the input: | 28.8 V |
| Type of output voltage: | AC/DC |
| Permissible voltage at the output: | 264 V |
| Category according to EN 954-1: | 1 |
| Performance level according to EN ISO 13849-1: | without |
| Suitable for safety functions: | no |
| Input current for signal 1: | 7 mA |
| Delay time for signal change: | 10 ms |
| Short circuit protection, outputs available: | no |
| Associated equipment (Ex ia) : | no |
| Associated equipment (Ex ib) : | no |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Digital outputs configurable: | no |
| Digital inputs configurable: | no |
| SIL according to IEC 61508: | without |
Features
Type of voltage of the supply voltage
DC
Output current
2 A
HAB
TM3DM24R 16 On TM3 8 Off
Manufacturer
HAN
TM3DM24R
GTIN
3606480611544
Design of the electrical connection
Screw connection
Width
42.9 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Height
90 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
Depth
84.6 mm
