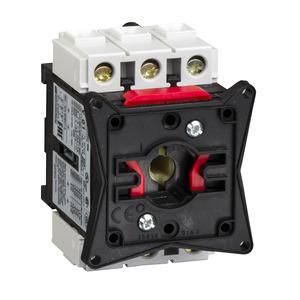

Load-break switches A range of safety control products that are easy to use and set up, with compact and ergonomic products for starter motor and stop motor requirements.
| Feature | Value |
| Number of poles: | 3.0 |
| Operating power: | 11.0 kW |
| Number of auxiliary contacts as normally closed: | 0.0 |
| Number of auxiliary contacts as normally open: | 0.0 |
| Number of auxiliary contacts as changeover: | 0.0 |
| Rated continuous current Iu: | 32.0 A |
| Max. Rated operating voltage Ue at AC: | 690.0 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Screw connection |
| Device design: | Built-in device, fixed installation technology |
| Suitable for floor mounting: | no |
| Conditional rated short-circuit current Iq: | 10.0 kA |
| Integrated motor drive: | no |
| Suitable for 4-hole front mounting: | yes |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for central front mounting: | yes |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.384 kA |
| Rated operating voltage: | 690.0 V |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Rated continuous current at AC-21, 400 V: | 32.0 A |
| Number of switches: | 1.0 |
| Rated continuous current at AC-23, 400 V: | 21.8 A |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
V1
Manufacturer
HAN
V1
GTIN
3389110551693
Connection type main circuit
Screw connection
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Number of switches
1.0
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
No
Version as reversing switch
No
Conditional rated short-circuit current Iq
10.0kA
Rated operational power at AC-3, 400 V
7.5kW
Rated operating voltage
690.0V
Rated continuous current Iu
32.0A
Rated continuous current at AC-21, 400 V
32.0A
Rated continuous current at AC-23, 400 V
21.8A
Rated short-time withstand current Icw
0.384kA
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting Central
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
690.0V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3.0
Protection class (IP), front
IP20
Voltage release optional
No
Lockable
No
