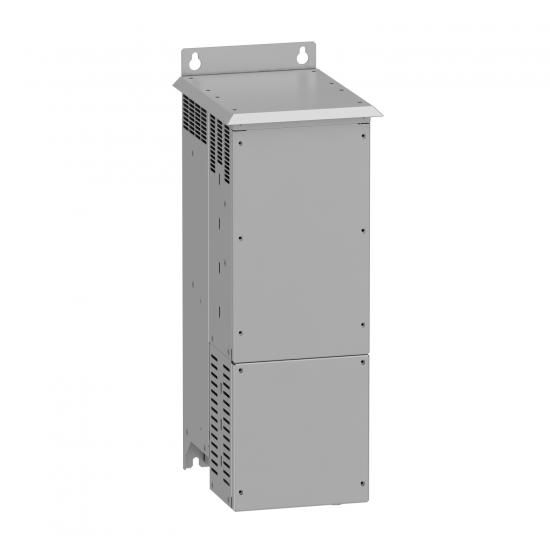

Braking module for ATV930D55M3C - D75M3C frequency converters. Continuous power 60 kW, maximum power 80 kW, losses at continuous power 400 W, percentage of conduction time 5 % at 150 kW, 15 % at 120 kW, 50 % at 95 kW, minimum resistance value 1 . Supply voltage 200-240 V 50/60 Hz. Cable (converter - braking module), cross-section 3 x 120 mm, maximum length 10 m. Cable (braking module - resistors), cross-section 3 x 120 mm, maximum length 10 m. Braking modules allow Altivar Process frequency converters to operate during braking to a standstill or in generator mode by dissipating the energy in the braking resistor. Brake modules offer protection class IP 20. Thermal protection is provided by an integrated temperature sensor. Areas of application Machines with a large moment of inertia, machines with slow and fast cycles, high-performance machines performing vertical movements.
| Property | Value |
| Type of accessory/spare part: | Brake unit |
| Accessory: | yes |
| Spare part: | no |
