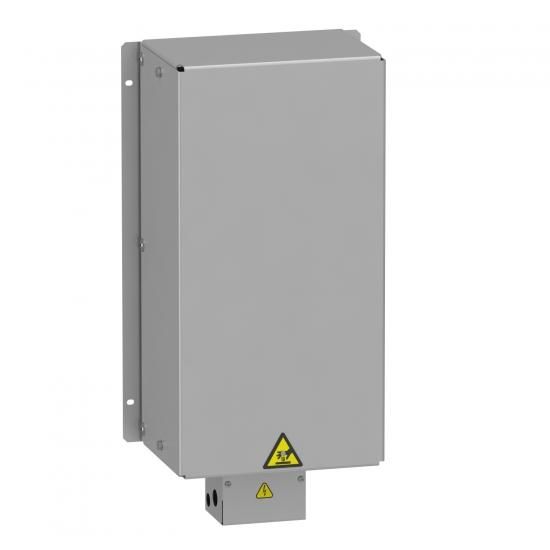

Schneider Electric VW3A7743 16Ohm 2.2kW IP20 braking resistor

Braking resistor, for ATV930D18N4 - D30N4, ATV950D18N4 - D30N4, ATV950D18N4E - D30N4E drives. Reference values for an average braking cycle. Power VA 2.2 kW, protection class IP20, resistance 16 at 20 °C. Supply voltage 200-240 V or 380-480 V 50/60 Hz. Load factor for resistors The value of the average power that can be dissipated from the resistor into the housing at 50 °C. Determined for a load factor during braking that corresponds to the majority of common applications. Standard overload 4 s braking at a braking torque of 1.35 Tn for a cycle of 40 s. High overload 4 s braking at a braking torque of 1.65 Tn for a cycle of 40 s. Required number per inverter 1.
