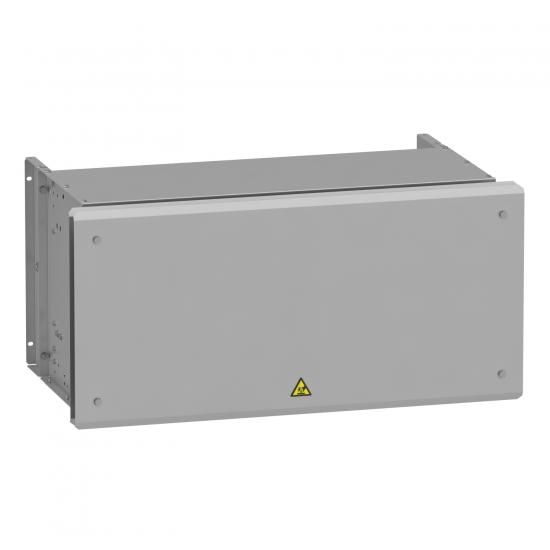

Schneider Electric VW3A7753 16Ohm 14kW IP23 braking resistor

Braking resistor, for ATV930U75M3, ATV930D18N4-D30N4, ATV950D18N4-D30N4, ATV950D18N4E-D30N4E drives. Reference values for a heavy braking cycle (lifting applications). Power VA 14 kW, protection class IP23, resistance 16 at 20 °C. Supply voltage 200-240 V or 380-480 V 50/60 Hz. Load factor for resistors The value of the average power that can be dissipated from the resistor into the housing at 50 °C. Determined for a load factor during braking that corresponds to the majority of common applications. High overload 54 s braking at a braking torque of 1 Tn and 6 s braking at a braking torque of 1.65 Tn for a cycle of 120 s. Required number per inverter 1.
