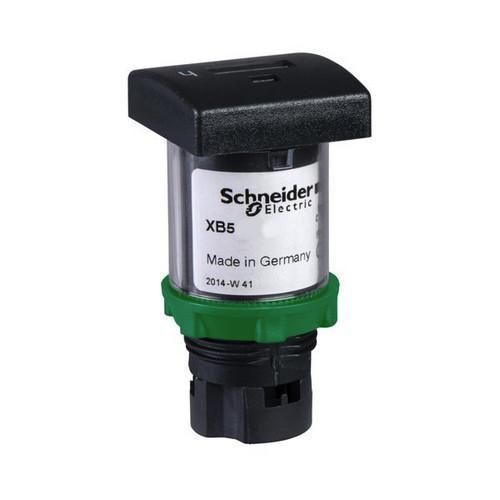

Command and signaling devices made of plastic, diameter 22mm. The control and signaling devices designed for industry combine simple installation with great flexibility and numerous design options.
| Property | Value |
| Voltage type: | AC/DC |
| Mounting type: | Surface and front mounting |
| Width: | 30.0 mm |
| Height: | 30.0 mm |
| Width in modular units: | 0.0 |
| Protection class (IP): | IP65 |
| Design: | digital |
| Counting range: | 9999.0 h |
| Input voltage frequency: | 50.0 Hz |
| Reset function: | without |
| Running display: | yes |
| Number of characters: | 5.0 |
| Drive type: | mains synchronous |
| Installation depth: | 60.0 mm |
| Front panel Width: | 30.0 mm |
| Front panel height: | 30.0 mm |
| Diameter of front mounting cutout: | 22.5 mm |
| Mounting up to max. wall thickness: | 6.0 mm |
| Input voltage: | 230.0 to 240.0 V |
| Protection class (NEMA): | other |
Features
Input voltage
230.0 to 240.0 V
HAB
XB5DSM
Manufacturer
HAN
XB5DSM
GTIN
3389110102642
Drive type
Grid synchronous
Version
Digital
Width
30.0 mm
Width in pitch units
0.0
Installation depth
60.0 mm
Height
30.0 mm
Mounting type
Surface and front mounting
IP protection)
IP65
Protection class (NEMA)
Other
Voltage type
AC/DC
