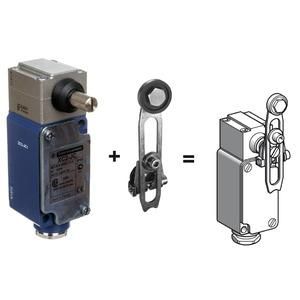

XC2 position switch roller lever, 1 opener or 1 closer
| Property | Value |
| Opener: | 0.0 |
| Maker: | 0.0 |
| Changer: | 1.0 |
| Length: | 41.0 mm |
| Width: | 40.0 mm |
| Height: | 121.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | Snap-action switching element |
| Actuator: | Adjustable roller lever |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Version of the Interface: | without |
| Design of the electrical connection: | Cable entry PG |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | no |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at AC-15, 125 V: | 3.0 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
3.0 A
HAB
XC2JC10531 IP65
Manufacturer
HAN
XC2JC10531
GTIN
3389110327830
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry PG
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
40.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
121.0 mm
Length
41.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Metal
Forced opening
No
