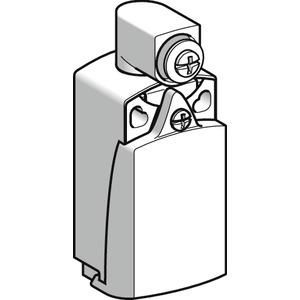

OsiSense XC position switch XCK D. with drive for rotary axis actuation. Connection M16, actuator (with drive for rotary axis actuation), switching contacts Ö + S, switching principle snap. Complete devices, metal-encapsulated. W/D/H 30 x 31 x 65 mm (without actuator). Protection class IP 66 and IP 67 as well as IK 06 (also available in modular design). Also available with ISO M20 x1.5, ISO M16 x1.5 and Pg11.
| Property | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Lenght: | 30.0 mm |
| Width: | 31.0 mm |
| Height: | 65.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | Snap-action switching element |
| Actuator: | other |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Version of the Interface: | without |
| Design of the electrical connection: | Cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Electronic output
No
HAB
XCKD2101P16 Metal
Manufacturer
HAN
XCKD2101P16
GTIN
3389110320633
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
31.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
65.0 mm
Length
30.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Metal
Forced opening
Yes
