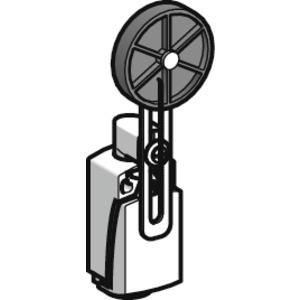

Position switch with length-adjustable roller lever and plastic roller 50mm diameter. 1 opener and 1 makeer, Pg11 connection
| Property | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Length: | 45.0 mm |
| Width: | 50.0 mm |
| Height: | 175.0 mm |
| Protection class (IP): | IP66/IP67 |
| Switching function: | Snap-action switching element |
| Actuator: | Roller lever |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Interface design: | without |
| Design of the electrical connection: | Cable entry PG |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Material of the housing: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Electronic output
No
HAB
XCKD2149G11 universal
Manufacturer
HAN
XCKD2149G11
GTIN
3389110310153
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry PG
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
50.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
175.0 mm
Length
45.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP66/IP67
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Metal
Forced opening
Yes
