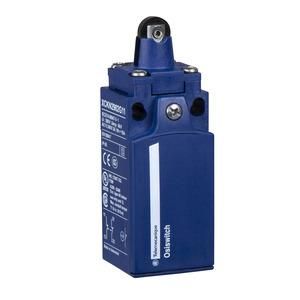

OsiSense XC. XCKN position switch. Connection Pg 11, actuator roller plunger with metal roller, switching contacts NC + NO, switching principle snap, packing unit 20. Complete devices, plastic-encapsulated. W/D/H 30 x 30 x 65 mm (without actuator). Protection class IP 65 and IK 04.
| Property | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Length: | 30.0 mm |
| Width: | 30.0 mm |
| Height: | 85.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | other |
| Actuator: | roller plunger |
| Explosion protection category for dust: | without |
| Housing design: | cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Interface design: | without |
| Design of the electrical connection: | Cable entry PG |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Material of the housing: | Plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.1 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | Roller plunger straight |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.1 A
Electronic output
No
HAB
XCKN2102G11 optimum
Manufacturer
HAN
XCKN2102G11
GTIN
3389110318913
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry PG
Alignment of the actuator
Roller tappet straight
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
30.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
85.0 mm
Length
30.0 mm
With status display
No
Switching function
Other
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Plastic
Forced opening
Yes
