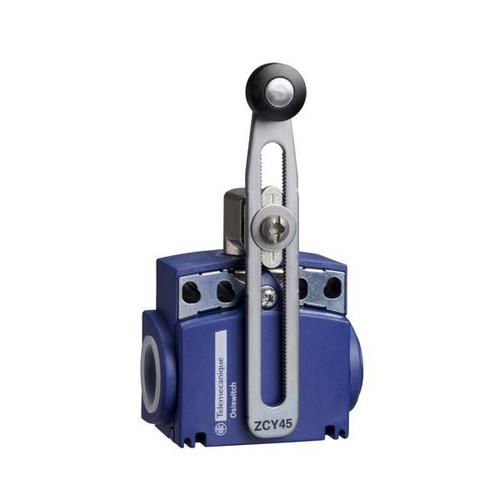

XCKT position switch roller lever plastic roller length adjustable, 1 opener and 1 closer, jump function, 1/2 inch NPT
| Property | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Length: | 28.0 mm |
| Width: | 79.3 mm |
| Height: | 46.0 mm |
| Protection class (IP): | IP67K |
| Switching function: | Snap-action switching element |
| Actuator: | Roller lever |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Design of the interface: | without |
| Design of the electrical connection: | other |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Electronic output
No
HAB
XCKT2145N12 universal
Manufacturer
HAN
XCKT2145N12
GTIN
3389110306125
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Other
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
79.3 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
46.0 mm
Length
28.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP67K
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Plastic
Forced opening
Yes
