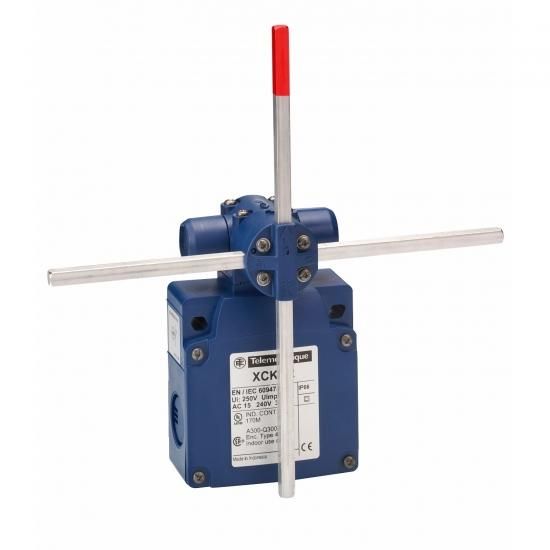

OsiSense XC position switch XCK VR. XCKVR cross switch. Metal rod, 6 mm, M20. Connection M20, actuator metal-steel lever (cross switch), switching contacts 2x -Ö+Ö-, switching principle slow action. Complete devices. Plastic housing 77 x 37 x 81 mm (without actuator). Protection class IP 65. stepped switching, without jump function.
| Property | Value |
| Opener: | 2.0 |
| Maker: | 0.0 |
| Changer: | 0.0 |
| Lenght: | 57.0 mm |
| Width: | 200.0 mm |
| Height: | 200.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | Slow action switching element and snap action switching element |
| Actuator: | Swivel lever |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Version of the Interface: | without |
| Design of the electrical connection: | other |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Material of the housing: | plastic |
| Rated operating current Ie at DC-13, 125 V: | 0.55 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | roller plunger transverse |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 125 V
0.55 A
Electronic output
No
HAB
XCKVR54D1H29
Manufacturer
HAN
XCKVR54D1H29
GTIN
3389119077491
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Other
Alignment of the actuator
Roller tappet transverse
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
200.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
200.0 mm
Length
57.0 mm
With status display
No
Switching function
Slow-action switching element and snap-action switching element
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Plastic
Forced opening
Yes
