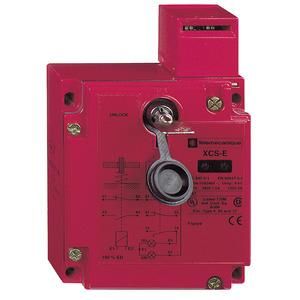

XCSE safety position switch metal encapsulated, 2 break contacts and 1 make contact, stepped switching 2 cable entries
| Property | Value |
| Number of contacts as break contacts: | 2.0 |
| Number of contacts as make contacts: | 1.0 |
| Number of contacts as changeover contacts: | 0.0 |
| Number of safety-related auxiliary contacts: | 0.0 |
| Interface design: | other |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | other |
| Design of the switching element: | other |
| Rated operating current Ie at AC-15, 125 V: | 3.0 A |
| Rated operating current Ie at AC-15, 230 V: | 1.5 A |
| Rated operating current Ie at DC-13, 125 V: | 0.55 A |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated control supply voltage magnetic drive AC 50 Hz: | 20.0 to 52.0 V |
| Rated control supply voltage magnetic drive AC 60 Hz: | 20.0 to 52.0 V |
| Rated control supply voltage magnetic drive DC: | 20.0 to 52.0 V |
| Width of the sensor: | 98.0 mm |
| Explosion protection category for gas: | other |
| Explosion protection category for dust: | other |
| Suitable for safety functions: | no |
| Housing design: | Cuboid |
| Height of the sensor: | 146.0 mm |
| Length of the sensor: | 44.0 mm |
| With escape release: | no |
| With status display: | no |
| Protection class (IP): | IP67K |
| Ambient temperature during operation: | -25.0 to 40.0 °C |
| Housing material: | other |
| Locking force: | 2000.0 N |
| Type of locking: | Working current principle |
| With auxiliary release: | no |
| Housing coating: | other |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Rated operating current Ie at DC-13, 125 V
0.55 A
Rated operating current Ie at AC-15, 125 V
3.0 A
HAB
XCSE731121 XCSE7311 Key 520
Manufacturer
HAN
XCSE731121
GTIN
3389110956764
Number of contacts as normally open
1.0
Number of contacts as changeover
0.0
Number of contacts as opener
2.0
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Other
Design of the interface for safety-related communication
Other
Design of the electrical connection
Other
Rated operating current Ie at AC-15, 230 V
1.5A
Housing coating
Other
Width of the sensor
98.0 mm
Explosion protection category for gas
Other
Explosion protection category for dust
Other
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
146.0 mm
Length of the sensor
44.0 mm
With status display
No
IP protection)
IP67K
Ambient temperature during operation
-25.0 to 40.0 °C
Housing material
Other
