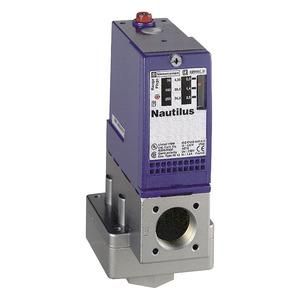

XMLA pressure switch 2.5 bar, fixed hysteresis, 1 switching point, 1 breaker or 1 makeer, DIN
| Property | Value |
| Initial value of measuring range pressure: | 0.0 Pa |
| Number of auxiliary contacts as breakers: | 0.0 |
| Number of auxiliary contacts as makeers: | 0.0 |
| Number of auxiliary contacts as changers: | 1.0 |
| Number of breakers as main contacts: | 0.0 |
| Number of normally open contacts as main contacts: | 0.0 |
| Design of the electrical connection: | Screw connection |
| Switch-off pressure: | 0.02 to 2.37 bar |
| Rated operating power at AC-3, 400 V: | 0.0 kW |
| Rated operating voltage Ue at AC 50 Hz: | 120.0 to 240.0 V |
| Rated operating voltage Ue at AC 60 Hz: | 120.0 to 240.0 V |
| Rated operating voltage Ue at DC: | 250.0 V |
| Rated operating current Ie at AC-1, 400 V: | 0.0 A |
| Rated operating current Ie at AC-3, 400 V: | 0.0 A |
| Burst pressure: | 18.0 bar |
| Pressure switching difference: | 0.13 bar |
| Switch-on pressure: | 0.15 to 2.5 bar |
| Electronic version: | no |
| End value measuring range pressure: | 0.0 Pa |
| Explosion-proof: | no |
| Suitable as a 2-point controller: | no |
| Suitable as a limiter: | yes |
| Suitable as a monitor: | yes |
| Max. Test pressure: | 9.0 bar |
| Medium temperature: | 0.0 to 160.0 °C |
| With manual operation: | no |
| Protection class (IP): | IP66 |
| Initial setting: | 150.0 to 2500.0 hPa |
| Final setting: | 20.0 to 2370.0 hPa |
| Switching capacity at AC-3, 240 V: | 0.0 kA |
| Max. Working pressure: | 2500.0 hPa |
| With manual on/off switch: | no |
| Connection: | Internal thread cylindrical (BSPP) |
| Thread size: | 1/4 inch |
| With display: | no |
| Protection class (NEMA): | other |
| Height: | 158.0 mm |
| Width: | 35.0 mm |
| Depth: | 77.5 mm |
Features
Number of auxiliary contacts as changeover contacts
1.0
HAB
XMLA002C2S11
Manufacturer
HAN
XMLA002C2S11
GTIN
3389110711271
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Number of normally open contacts as main contacts
0.0
Design of the electrical connection
Screw connection
Rated operational power at AC-3, 400 V
0.0kW
Rated operational current Ie at AC-1, 400 V
0.0A
Rated operational current Ie at AC-3, 400 V
0.0A
Width
35.0 mm
Explosion-proof
No
Height
158.0 mm
With display
No
IP protection)
IP66
Protection class (NEMA)
Other
Depth
77.5 mm
