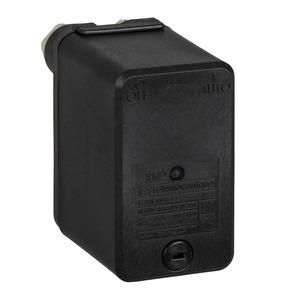

XMP pressure switch, 6 bar, G 3/8 inch (socket), 3 openers, without adjustment option
| Property | Value |
| Initial value of measuring range pressure: | 100000.0 Pa |
| Number of auxiliary contacts as openers: | 0.0 |
| Number of auxiliary contacts as makeers: | 0.0 |
| Number of auxiliary contacts as changers: | 0.0 |
| Number of openers as main contacts: | 3.0 |
| Number of normally open contacts as main contacts: | 0.0 |
| Design of the electrical connection: | Screw connection |
| Switch-off pressure: | 0.2 to 4.8 bar |
| Rated operating voltage Ue at AC 50 Hz: | 230.0 to 400.0 V |
| Rated operating voltage Ue at AC 60 Hz: | 230.0 to 400.0 V |
| Bursting pressure: | 30.0 bar |
| Pressure switching difference: | 4.2 bar |
| Switch-on pressure: | 1.0 to 6.0 bar |
| Electronic version: | no |
| End value measuring range pressure: | 600000.0 Pa |
| Explosion-proof: | no |
| Suitable as 2-point controller: | yes |
| Suitable as limiter: | yes |
| Suitable as monitor: | no |
| Medium temperature: | 0.0 to 70.0 °C |
| With manual operation: | no |
| Protection class (IP): | IP54 |
| Initial setting: | 1000.0 to 6000.0 hPa |
| Final setting: | 200.0 to 4800.0 hPa |
| Max. Working pressure: | 6000.0 hPa |
| With manual on/off switch: | no |
| Thread size: | other |
| With display: | no |
| Protection class (NEMA): | other |
| Height: | 106.0 mm |
| Width: | 57.0 mm |
| Depth: | 98.0 mm |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
XMPA06C2242
Manufacturer
HAN
XMPA06C2242
GTIN
3389110349016
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Number of normally open contacts as main contacts
0.0
Design of the electrical connection
Screw connection
Width
57.0 mm
Explosion-proof
No
Height
106.0 mm
With display
No
IP protection)
IP54
Protection class (NEMA)
Other
Depth
98.0 mm
