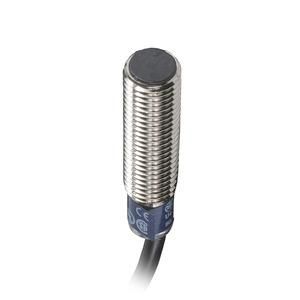

XS1 inductive proximity switch M8 cylindrical format, length 33mm, brass housing, switching distance 2mm, 12-24V DC, 2m cable
| Property | Value |
| Switching distance: | 2.5 mm |
| Voltage type: | AC/DC |
| Design of the switching output: | PNP/PNP |
| Mechanical installation condition for sensor: | flush |
| Performance level according to EN ISO 13849-1: | without |
| Immunity to magnetic fields: | immune to magnetic direct and alternating fields |
| Design of the interface: | without |
| Design of the switching function: | normally open contact |
| Type of actuation: | metallic target |
| Frequency: | 2500.0 Hz |
| Length of the sensor: | 33.0 mm |
| Pressure-resistant: | no |
| Rated control supply voltage DC: | 12.0 to 24.0 V |
| Suitable for safety functions: | no |
| Sensor diameter: | 8.0 mm |
| Number of semiconductor outputs with signaling function: | 1.0 |
| Number of contact-based outputs with signaling function: | 0.0 |
| Number of safe semiconductor outputs: | 0.0 |
| Number of safe contact-based outputs: | 0.0 |
| Design of the interface for safety-related communication: | without |
| Design of the electrical connection: | radial cable |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | cylinder, thread |
| Housing coating: | nickel-plated |
| Cascadable: | no |
| Max. Output current at the safe output: | 200.0 mA |
| Supply voltage: | 12.0 to 24.0 V |
| With monitoring function for downstream devices: | no |
| Housing material: | metal |
| SIL according to IEC 61508: | without |
Features
Mechanical installation condition for sensor
Flush
Design of the switching function
Closer
Supply voltage
12.0 to 24.0V
HAB
XS108B3PAL2 inductive
Manufacturer
HAN
XS108B3PAL2
GTIN
3389119036184
Type of operation
Metallic target
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the switching output
PNP/PNP
Design of the electrical connection
Cable radial
Housing coating
Nickel-plated
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Frequency
2500.0Hz
Suitable for security functions
No
Housing design
Cylinder, thread
Length of the sensor
33.0 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
Switching distance
2.5 mm
Voltage type
AC/DC
Supply voltage
12.0 to 24.0V
Housing material
Metal
