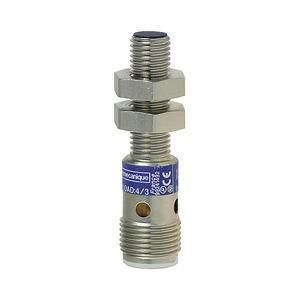

XS6 inductive proximity switch in cylindrical design M8, length 62mm, stainless steel, switching distance Sn 2.5mm, power supply 12-48V DC, connector M12
| Property | Value |
| Switching distance: | 2.5 mm |
| Type of voltage: | AC/DC |
| Design of the switching output: | PNP/PNP |
| Mechanical installation condition for sensor: | flush |
| Performance level according to EN ISO 13849-1: | without |
| Immunity to magnetic fields: | immune to magnetic direct and alternating fields |
| Design of the interface: | without |
| Design of the switching function: | normally open contact |
| Type of actuation: | metallic target |
| Frequency: | 2500.0 Hz |
| Length of the sensor: | 61.0 mm |
| Pressure-resistant: | no |
| Rated control supply voltage DC: | 12.0 to 48.0 V |
| Suitable for safety functions: | no |
| Sensor diameter: | 8.0 mm |
| Number of semiconductor outputs with signaling function: | 1.0 |
| Number of contact-based outputs with signaling function: | 0.0 |
| Number of safe semiconductor outputs: | 0.0 |
| Number of safe contact-based outputs: | 0.0 |
| Version the interface for safety-related communication: | without |
| Design of the electrical connection: | M12 connector |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | cylinder, thread |
| Housing coating: | other |
| Cascadable: | no |
| Max. Output current at the safe output: | 200.0 mA |
| Supply voltage: | 12.0 to 48.0 V |
| With monitoring function for downstream devices: | no |
| Housing material: | metal |
| SIL according to IEC 61508: | without |
Features
Mechanical installation condition for sensor
Flush
Design of the switching function
Closer
Supply voltage
12.0 to 48.0 V
HAB
XS608B1PAM12 M8
Manufacturer
HAN
XS608B1PAM12
GTIN
3389110145656
Type of operation
Metallic target
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the switching output
PNP/PNP
Design of the electrical connection
Connector M12
Housing coating
Other
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Frequency
2500.0Hz
Suitable for security functions
No
Housing design
Cylinder, thread
Length of the sensor
61.0 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
Switching distance
2.5 mm
Voltage type
AC/DC
Supply voltage
12.0 to 48.0 V
Housing material
Metal
