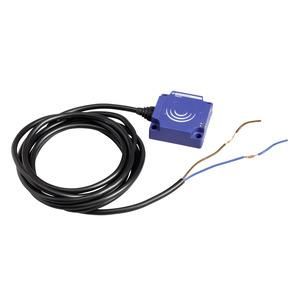

XS8 inductive proximity switch, design 40x40x15mm, plastic housing PBT, switching distance Sn 25mm, power supply 12-24V DC, 2m connection cable
| Property | Value |
| Switching distance: | 25.0 mm |
| Voltage type: | AC/DC |
| Design of the switching output: | PNP/PNP |
| Mechanical installation condition for sensor: | not flush |
| Width of the sensor: | 40.0 mm |
| Height of the sensor: | 40.0 mm |
| Performance level according to EN ISO 13849-1: | without |
| Immunity to magnetic fields: | immune to magnetic direct and alternating fields |
| Design of the interface: | without |
| Design of the switching function: | normally open contact |
| Type of actuation: | metallic target |
| Frequency: | 1000.0 Hz |
| Sensor length: | 15.0 mm |
| Pressure-resistant: | no |
| Rated control supply voltage DC: | 12.0 to 24.0 V |
| Suitable for safety functions: | no |
| Number of semiconductor outputs with signaling function: | 1.0 |
| Number of contact-based outputs with signaling function: | 0.0 |
| Number of safe semiconductor outputs: | 0.0 |
| Number of safe contact outputs: | 0.0 |
| Design of the interface for safety-related communication: | without |
| Design of the electrical connection: | radial cable |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | special design |
| Housing coating: | other |
| Cascadable: | no |
| Max. output current at the safe output: | 200.0 mA |
| Supply voltage: | 12.0 to 24.0 V |
| With monitoring function for downstream devices: | no |
| Housing material: | Plastic |
| SIL according to IEC 61508: | without |
Features
Mechanical installation condition for sensor
Not flush
Design of the switching function
Closer
Supply voltage
12.0 to 24.0V
HAB
XS8C1A1PAL2 Osiconcept
Manufacturer
HAN
XS8C1A1PAL2
GTIN
3389110142655
Type of operation
Metallic target
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the switching output
PNP/PNP
Design of the electrical connection
Cable radial
Housing coating
Other
Width of the sensor
40.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Frequency
1000.0Hz
Suitable for security functions
No
Housing design
Special design
Height of the sensor
40.0 mm
Length of the sensor
15.0 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
Switching distance
25.0 mm
Voltage type
AC/DC
Supply voltage
12.0 to 24.0V
Housing material
Plastic
