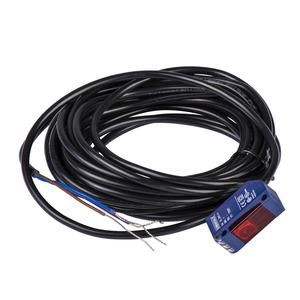

XUM optoelectronic sensor, miniature design, multifunctional sensor with teach button, switching distance Sn 0-10m, power supply 12-24V DC, 2m connecting cable
| Property | Value |
| Design of the switching output: | PNP/PNP |
| Rated switching distance: | 10000.0 mm |
| Voltage DC: | 12.0 to 24.0 V |
| Current Imax.: | 100.0 mA |
| Button function: | dark switching |
| Protection class (IP): | IP65 |
| Width: | 20.0 mm |
| Height: | 34.0 mm |
| Design of the interface for safety-related communication: | other |
| Explosion protection category for gas: | without |
| Number of safe contact-based outputs: | 0.0 |
| Design of the electrical connection: | Cable radial |
| Laser protection class: | other |
| With communication interface INTERBUS: | no |
| With communication interface RS-485: | no |
| With communication interface Ethernet: | no |
| With reflector: | no |
| Analog output 4 mA ... 20 mA: | no |
| Housing design: | Special design |
| With communication interface SSD: | no |
| Pre-failure message: | no |
| With CANOpen communication interface: | no |
| With restart lock: | no |
| Analog output -10 V ... +10 V: | no |
| Housing material: | Plastic |
| Analog output 0 V ... 10 V: | no |
| Light type: | Infrared light |
| With communication interface Analog: | no |
| With PROFIBUS communication interface: | no |
| Switching function design: | programmable/configurable |
| Safety type according to IEC 61496-1: | 1 |
| Explosion protection category for dust: | without |
| Max. Opening angle: | 0.0 ° |
| Material of the optical surface: | Plastic |
| Number of contact outputs with signaling function: | 0.0 |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Equipment protection class: | Protection class 0 |
| With communication interface RS-422: | no |
| Max. Switching distance: | 14000.0 mm |
| Switching frequency: | 250.0 Hz |
| Number of safe semiconductor outputs: | 0.0 |
| With communication interface AS-Interface: | no |
| Response time: | 2.0 ms |
| With other analog output: | no |
| With monitoring function of downstream devices: | no |
| Scope of delivery of the one-way system: | Receiver |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with reporting function: | 1.0 |
| With SSI communication interface: | no |
| With DeviceNet communication interface: | no |
| Cable sheath material: | other |
| Ambient temperature: | -25.0 to 55.0 °C |
| Setting method: | Teach-In |
| Voltage type: | DC |
| With time function: | no |
Features
Design of the switching function
Programmable/configurable
Switching frequency
250.0 Hz
HAB
XUM0APSAL2 Osiconcept
Manufacturer
HAN
XUM0APSAL2
GTIN
3389110164916
Design of the interface for safety-related communication
Other
Design of the switching output
PNP/PNP
Design of the electrical connection
Cable radial
Width
20.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Special design
Height
34.0 mm
IP protection)
IP65
Voltage type
DC
Ambient temperature
-25.0 to 55.0 °C
Housing material
Plastic
