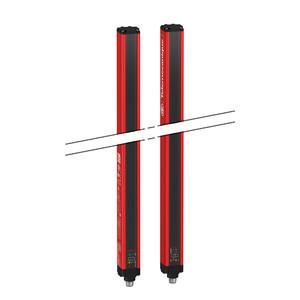

Schneider Electric XUSL2E3BB081N XUSL type 2 Hp=810mm safety light grid

Description

Features

Reviews

Safety light curtains XUSL4E - Type 2 - Body. XUSL Type 2, for body protection, 3 beams. Switching distance_mm 0-4 m or 1-12 m, protective field height 810 mm, beam spacing 400 mm. PLc/Category 2, supplied with transmitter and receiver, cable connection M12 connector. 2 safety transistor outputs PNP, switching distance up to 12 m. Multi-beam systems with infrared light transmitter.

Property	Value
Protective field height:	810 mm
Scope of delivery of the one-way system:	Transmitter and receiver
Suitable for safety functions:	yes
Length of the sensor:	31 mm
Rated control supply voltage Us at DC:	24 V
Height of the sensor:	977 mm
Width of the sensor:	29.4 mm
Range of the protective field:	12 m
Number of safe semiconductor outputs:	2
Blanking possible:	no
Design of the interface for safety-related communication:	other
Design of the switching output of the OSSD:	PNP
Design of the electrical connection:	M12 connector
Equipment protection class:	Protection class 1
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Cascadable:	no
Type of voltage:	DC
Max. Output current at the safe output:	400 mA
Ambient temperature:	55 °C
With muting function:	yes
Override possible:	no
Reaction time:	3.5 ms
Reduced resolution:	yes
Switching voltage of the OSSD in the high state:	24 V
Safety type according to IEC 61496-1:	2
With beam coding:	no
Clock control possible:	no
With monitoring function for downstream devices:	no
Sensor wavelength:	950 nm
With restart lock:	yes
Protection class (IP):	IP65
