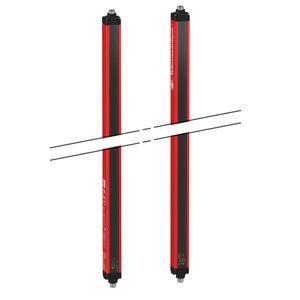

XUSL safety light curtain type 4, slave2, for body protection, protective field height Hp 510mm.
| Property | Value |
| Protective field height: | 510 mm |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| Suitable for safety functions: | yes |
| Length of the sensor: | 31 mm |
| Rated control supply voltage Us at DC: | 24 V |
| Height of the sensor: | 677 mm |
| Width of the sensor: | 29.4 mm |
| Range of the protective field: | 12 m |
| Number of safe semiconductor outputs: | 2 |
| Blanking possible: | no |
| Design of the interface for safety-related communication: | other |
| Design of the switching output of the OSSD: | PNP |
| Design of the electrical connection: | M12 connector |
| Equipment protection class: | Protection class 3 |
| Explosion protection category for gas: | none |
| Explosion protection category for dust: | none |
| Cascadable: | yes |
| Type of voltage: | DC |
| Max. Output current at the safe output: | 400 mA |
| Ambient temperature: | 55 °C |
| With muting function: | yes |
| Override possible: | no |
| Reduced resolution: | yes |
| Switching voltage of the OSSD in the high state: | 24 V |
| Safety type according to IEC 61496-1: | 4 |
| With beam coding: | no |
| Clock control possible: | no |
| With monitoring function of downstream devices: | no |
| Wavelength of the sensor: | 950 nm |
| With restart lock: | yes |
| Protection class (IP): | IP65 |
Features
HAB
XUSL type 4 510mm
Manufacturer
HAN
XUSL4E2BB051NS2
GTIN
3389119620321
Design of the interface for safety-related communication
Other
Design of the electrical connection
Connector M12
Rated control supply voltage Us at DC
24V
Width of the sensor
29.4 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Height of the sensor
677 mm
Length of the sensor
31 mm
Voltage type
DC
Ambient temperature
55°C
