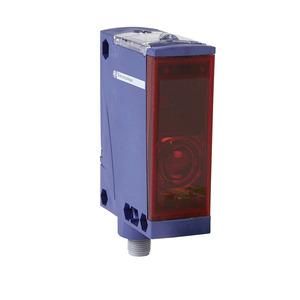

XUX optoelectronic sensor, compact design 92x71mm, reflection light sensor, switching distance Sn 2.1m, power supply 12-24V DC, connector M12
| Property | Value |
| Range of the protective field: | 0.3 m |
| Voltage DC: | 12.0 to 24.0 V |
| Current Imax.: | 100.0 mA |
| Button function: | dark switching |
| Protection class (IP): | IP67K |
| Length: | 77.0 mm |
| Width: | 31.0 mm |
| Height: | 92.0 mm |
| With analog communication interface: | no |
| Number of safe semiconductor outputs: | 1.0 |
| With RS-422 communication interface: | no |
| Min. reflector distance: | 1.0 mm |
| Max. Sensing distance: | 3000.0 mm |
| Max. Output current at the safe output: | 100.0 mA |
| Response time: | 2.0 ms |
| With reflector: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| Number of contact-based outputs with Reporting function: | 0.0 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Number of safe contact-based outputs: | 0.0 |
| Analog output 0 V ... 10 V: | no |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1.0 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | M12 connector |
| Design of the switching output: | PNP/PNP |
| Design of the switching function: | Normally open (NO) |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Special design |
| Laser protection class: | without |
| Light type: | Infrared light |
| Switching frequency: | 250.0 Hz |
| Voltage type: | AC/DC |
| Ambient temperature: | -25.0 to 55.0 °C |
| Pre-failure warning: | no |
| Material of the optical surface: | plastic |
| Material of the housing: | plastic |
| Material of the cable sheath: | other |
| With time function: | no |
Features
Design of the switching function
Normally open (NO)
Switching frequency
250.0 Hz
HAB
XUX5APANM12
Manufacturer
HAN
XUX5APANM12
GTIN
3389110170832
Design of the interface for safety-related communication
Other
Design of the switching output
PNP/PNP
Design of the electrical connection
Connector M12
Width
31.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Special design
Height
92.0 mm
Length
77.0 mm
IP protection)
IP67K
Voltage type
AC/DC
Ambient temperature
-25.0 to 55.0 °C
Housing material
Plastic
