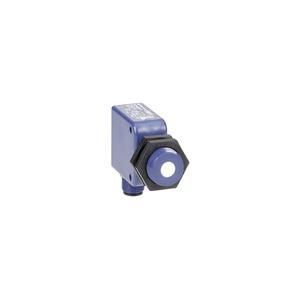

Schneider Electric XX9V1A1F1M12 cuboid Sn 0.5m 0 10 V M12 ultrasonic sensor

Description

Features

Reviews

This Telemecanique Sensor OsiSense flat ultrasonic sensor has a VALOX housing. It has a switching distance of 0.5 m (adjustable via teach mode) and an M12 connector. It has a supply voltage of 12 to 24VDC and an analog output of 0 to 10V. This universal cuboid ultrasonic sensor with analog output can be mounted directly on a surface or bracket thanks to its cylindrical thread and 2 fastening nuts and complies with the IEC 60947-5-2 standard.

Property	Value
AWG number:	0.0
Width of the sensor:	18.0 mm
Diameter of the sensor:	18.0 mm
Adjustable distance:	51.0 to 508.0 mm
Height of the sensor:	33.0 mm
Sensor length:	60.0 mm
Length measuring range:	51.0 to 508.0 mm
Analog output design:	0 V ... 10 V
Electrical connection design:	M12 connector
Switching output design:	other
Switching function design:	other
Blind zone:	51.0 mm
Setting method:	Teach-In
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Standard for interfaces:	analog
No-load current:	40.0 mA
Relative linearity deviation:	0.0 %
Max. Output current:	0.0 mA
Ambient temperature:	-20.0 to 65.0 °C
Supply voltage:	12.0 to 24.0 V
Relative repeatability:	1.27 %
Switching frequency:	0.0 Hz
Type of voltage:	DC
Synchronization possible:	no
Material of the active surface of the sensor:	Plastic
Material of the housing:	Plastic
Material of the cable sheath:	other
Protection class (IP):	IP67
