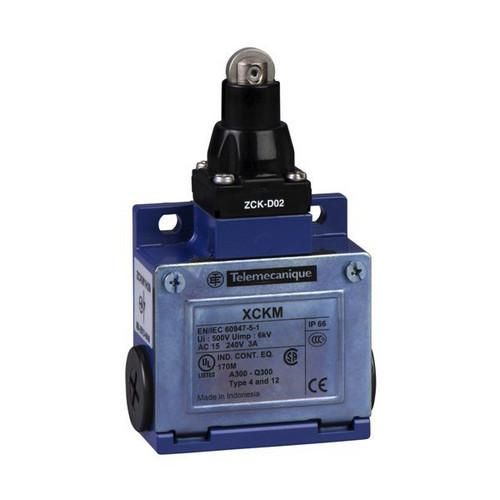

ZCKM position switch housing, 1NC+1NO, snap action, Pg 11. Product range: OsiSense XC - Range name: Standard format - Product or component type: Position switch housing - Device short name: ZCKM - Housing type: fixed - Product compatibility: XCKM - Associated head: ZCKD239, ZCKD59, ZCKD23, ZCKD10, ZCKD109, ZCKD91, ZCKD21, ZCKD15, ZCKD06, ZCKD219, ZCKD02, ZCKD029, ZCKD08, ZCKD05, ZCKD41, ZCKD17, ZCKD81, ZCKD16 - Connection structure and type: 1NC+1NO - Contact material: gold-plated contacts.
| Feature | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Lenght: | 30.0 mm |
| Width: | 64.0 mm |
| Height: | 64.0 mm |
| Diameter: | 0.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | Snap-action switching element |
| Actuator: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Interface design: | without |
| Design of the electrical connection: | Cable entry PG |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Material of the Housing: | Metal |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at DC-13, 125 V: | 0.0 A |
| Rated operating current Ie at DC-13, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 125 V: | 0.0 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Rated operating current Ie at DC-13, 125 V
0.0 A
Rated operating current Ie at AC-15, 24 V
0.0 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
0.0 A
HAB
ZCKM18 OES
Manufacturer
HAN
ZCKM18
GTIN
3389110599657
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry PG
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Rated operating current Ie at DC-13, 24 V
0.0A
Housing coating
Other
Width
64.0 mm
Diameter
0.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
64.0 mm
Length
30.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Metal
Forced opening
Yes
