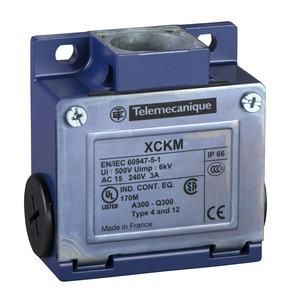

Position switch housing OsiSense XCKM. Switching contacts: 1NO+1NC with snap function, 3 cable entries for M20. Zamak metal housing, metal encapsulated, IP66, IK05.
| Property | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Lenght: | 30.0 mm |
| Width: | 64.0 mm |
| Height: | 64.0 mm |
| Protection class (IP): | IP65 |
| Switching function: | Snap-action switching element |
| Actuator: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Interface design: | without |
| Design of the electrical connection: | Cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.27 A |
| Rated operating current Ie at AC-15, 230 V: | 3.0 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.27 A
Electronic output
No
HAB
ZCKM1H29 OES
Manufacturer
HAN
ZCKM1H29
GTIN
3389110739503
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.0A
Housing coating
Other
Width
64.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
64.0 mm
Length
30.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP65
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Metal
Forced opening
Yes
