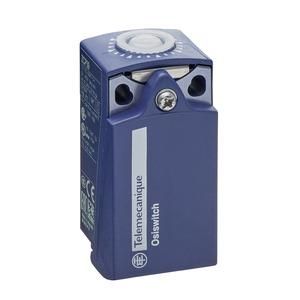

Auxiliary switch housing for position switch XCK P. ZCP position switch housing. Switching contacts NC + NC + NO, snap switching principle. Plastic encapsulated, W/D/H 30 x 31 x 65 mm (actuator). Protection class IP 66, IP 67 and IK 04.
| Property | Value |
| Opener: | 2.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Length: | 30.0 mm |
| Width: | 31.0 mm |
| Height: | 65.0 mm |
| Diameter: | 0.0 mm |
| Protection class (IP): | IP66/IP67 |
| Switching function: | Snap-action switching element |
| Actuator: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Design of the interface: | without |
| Design of the electrical connection: | other |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.1 A |
| Rated operating current Ie at DC-13, 125 V: | 0.0 A |
| Rated operating current Ie at DC-13, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 125 V: | 0.0 A |
| Rated operating current Ie at AC-15, 230 V: | 0.75 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.1 A
Rated operating current Ie at DC-13, 125 V
0.0 A
Rated operating current Ie at AC-15, 24 V
0.0 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
0.0 A
HAB
ZCP39 compact
Manufacturer
HAN
ZCP39
GTIN
3389110180497
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Other
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
0.75A
Rated operating current Ie at DC-13, 24 V
0.0A
Housing coating
Other
Width
31.0 mm
Diameter
0.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
65.0 mm
Length
30.0 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP66/IP67
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Plastic
Forced opening
Yes
