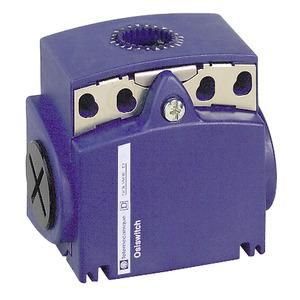

ZCT position switch housing, 1NC+1NO, compact, step switching, Pg 11. Product series: OsiSense XC - Series name: Standard Compact - Product or component type: Position switch housing - Device short name: ZCT - Design: compact - Housing type: fixed - Associated head: ZCE07, ZCE08, ZCE67, ZCE10, ZCE29, ZCE06, ZCE63, ZCE13, ZCE21, ZCE24, ZCEH0, ZCE65, ZCE11, ZCE14, ZCE64, ZCE01, ZCE05, ZCE66, ZCE27, ZCE62, ZCEH2, ZCE28, ZCE02 - Connection structure and type: 1NC+1NO - Contact operation: step switching, BBM.
| Feature | Value |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changer: | 0.0 |
| Lenght: | 30.0 mm |
| Width: | 58.0 mm |
| Height: | 51.0 mm |
| Diameter: | 0.0 mm |
| Protection class (IP): | IP66/IP67 |
| Switching function: | Slow action switching element |
| Actuator: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Interface design: | without |
| Design of the electrical connection: | Cable entry PG |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25.0 to 70.0 °C |
| Number of safety-related auxiliary contacts: | 0.0 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | Plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.1 A |
| Rated operating current Ie at DC-13, 125 V: | 0.0 A |
| Rated operating current Ie at DC-13, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 24 V: | 0.0 A |
| Rated operating current Ie at AC-15, 125 V: | 0.0 A |
| Rated operating current Ie at AC-15, 230 V: | 1.5 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
Features
Rated operating current Ie at DC-13, 230 V
0.1 A
Rated operating current Ie at DC-13, 125 V
0.0 A
Rated operating current Ie at AC-15, 24 V
0.0 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
0.0 A
HAB
ZCT25G11 Compact
Manufacturer
HAN
ZCT25G11
GTIN
3389110184198
Number of safety-related auxiliary contacts
0.0
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Cable entry PG
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
1.5A
Rated operating current Ie at DC-13, 24 V
0.0A
Housing coating
Other
Width
58.0 mm
Diameter
0.0 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height
51.0 mm
Length
30.0 mm
With status display
No
Switching function
Slow-action switching element
Switching function latching
No
IP protection)
IP66/IP67
Ambient temperature during operation
-25.0 to 70.0 °C
Housing material
Plastic
Forced opening
Yes
