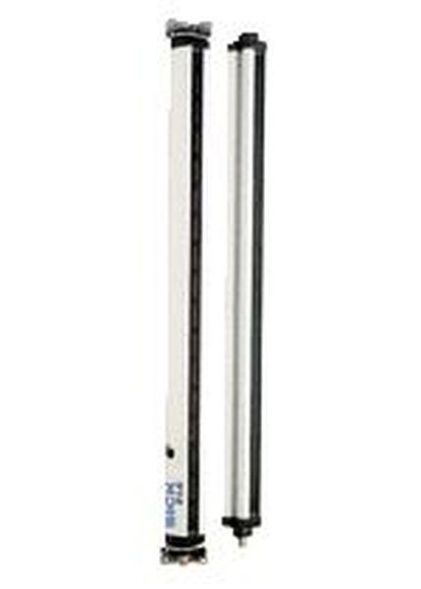

Switching automation light grids, ELG, operating range: 12 m, beam spacing: 60 mm, monitoring height: 2,040 mm, response time: 300 ms, connection type: M12 connector, 4-pin
| Property | Value |
| Protective field height: | 2116 mm |
| Suitable for safety functions: | no |
| Length of the sensor: | 29 mm |
| Height of the sensor: | 2116 mm |
| Width of the Sensors: | 34 mm |
| Blanking possible: | no |
| Design of the electrical connection: | M12 connector |
| Equipment protection class: | Protection class 3 |
| Cascadable: | no |
| Type of voltage: | DC |
| Ambient temperature: | -25 °C |
| With muting function: | no |
| Override possible: | no |
| Response time: | 300 ms |
| Reduced resolution: | no |
| With beam coding: | no |
| Clock control possible: | no |
| With monitoring function for downstream devices: | no |
| Sensor wavelength: | 880 nm |
| With restart lock: | no |
Features
HAB
ELG6-2040P523
Manufacturer
HAN
1025594
GTIN
4047084175787
Design of the electrical connection
Connector M12
Width of the sensor
34 mm
Suitable for security functions
No
Height of the sensor
2116 mm
Length of the sensor
29 mm
Voltage type
DC
Ambient temperature
-25°C
