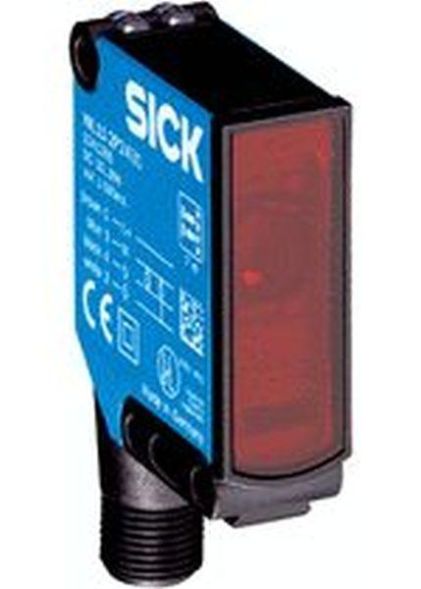

Small light barriers, W11-2, max. switching distance: 0.15 m ... 10 m, sensor principle: reflection light barrier, detection principle: double lens, switching output: NPN, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: LED, setting: none
| Property | Value |
| Rated switching distance: | 150 mm |
| Max. switching distance: | 10000 mm |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP66 |
| Height of the sensor: | 48.5 mm |
| Width of the sensor: | 15.6 mm |
| Length of the sensor: | 42 mm |
| Reaction time: | 2.5 ms |
| Switching frequency: | 200 Hz |
| Laser protection class: | other |
| Type of voltage: | DC |
| Material of the housing: | plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| With analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With PROFIBUS communication interface: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light unpolarized |
| Material of the optical surface: | Plastic |
| With communication interface RS-422: | no |
| With communication interface RS-232: | no |
| Design of the electrical connection: | Connector M12 |
| Design of the switching output: | NPN |
| Equipment protection class: | Protection class 2 |
| Housing design: | Cuboid |
| Ambient temperature: | -30 °C |
| With monitoring function of downstream devices: | no |
| Pre-failure warning: | no |
| Sensor wavelength: | 640 nm |
| With restart lock: | no |
Features
Switching frequency
200 Hz
HAB
WL11-2N2430
Manufacturer
HAN
1041387
GTIN
4047084184888
Design of the switching output
NPN
Design of the electrical connection
Connector M12
Width of the sensor
15.6 mm
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
48.5 mm
Length of the sensor
42 mm
IP protection)
IP66
Voltage type
DC
Ambient temperature
-30°C
Housing material
Plastic
