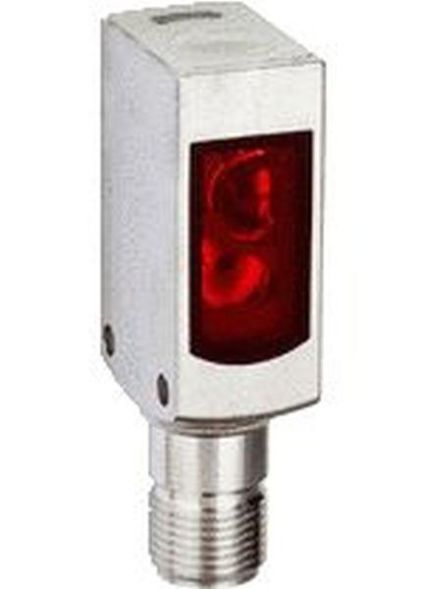

Miniature light barriers, W4S-3 Inox, switching distance max.: 4 mm ... 500 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: M12 connector, 4-pin, light transmitter: PinPoint LED, setting: teach-in button, communication interface: -
| Property | Value |
| Ambient temperature: | -30 °C |
| Design of the switching output: | PNP |
| With restart lock: | no |
| Switching frequency: | 1000 Hz |
| Width of the sensor: | 15.25 mm |
| With communication interface RS-232: | no |
| With communication interface DeviceNet: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface INTERBUS: | no |
| Design of the electrical connection: | Connector M12 |
| Button function: | light/dark switching |
| Sensor length: | 22.2 mm |
| Equipment protection class: | Protection class 3 |
| With analog communication interface: | no |
| Sensor wavelength: | 650 nm |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Analog output 0 V ... 10 V: | no |
| With monitoring function of downstream devices: | no |
| With PROFIBUS communication interface: | no |
| Suitable for safety functions: | no |
| With CANOpen communication interface: | no |
| With AS-Interface communication interface: | no |
| Housing design: | Cuboid |
| With other analog output: | no |
| Pre-failure warning: | no |
| Height of the sensor: | 49.2 mm |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| Light spot: | 6.5 mm² |
| With RS-485 communication interface: | no |
| Response time: | 0.5 ms |
| Reflector included included: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Max. switching distance: | 4 mm |
| Max. output current: | 100 mA |
| Type of voltage: | DC |
| With time function: | no |
| Protection class (IP): | IP66 |
Features
Switching frequency
1000 Hz
HAB
WTB4S-3P2462V
Manufacturer
HAN
1054675
GTIN
4047084223082
Design of the switching output
PNP
Design of the electrical connection
Connector M12
Width of the sensor
15.25 mm
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
49.2 mm
Length of the sensor
22.2 mm
IP protection)
IP66
Voltage type
DC
Ambient temperature
-30°C
