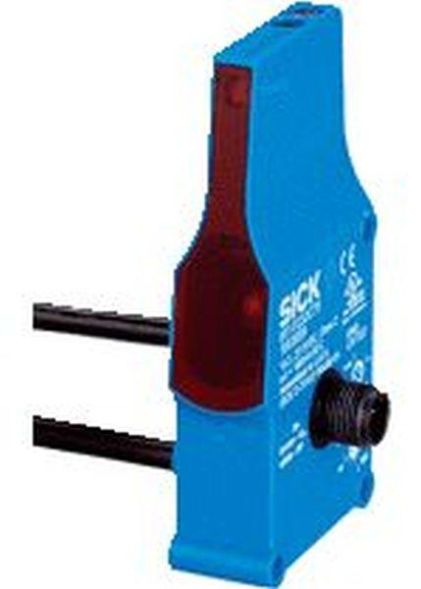

MultiTask light barriers, ZoneControl, sub-product family: IR, switching distance max.: 60 mm 900 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, connection type: plug
| Property | Value |
| Ambient temperature: | -40 °C |
| Design of the switching output: | PNP |
| With restart lock: | no |
| Material of the housing: | Plastic |
| Switching frequency: | 250 Hz |
| Width of the sensor: | 20.6 mm |
| With communication interface RS-232: | no |
| With communication interface DeviceNet: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface INTERBUS: | no |
| Design of the electrical connection: | Connector M12 |
| Length of the sensor: | 48.9 mm |
| Equipment protection class: | Protection class 3 |
| With analogue communication interface: | no |
| Light type: | Infrared light |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Analog output 0 V ... 10 V: | no |
| With monitoring function for downstream devices: | no |
| With PROFIBUS communication interface: | no |
| Suitable for safety functions: | no |
| With CANOpen communication interface: | no |
| With AS-Interface communication interface: | no |
| With other analog output: | no |
| Pre-failure message: | no |
| Height of the sensor: | 99.2 mm |
| Execution of the switching function: | other |
| With communication interface Ethernet: | no |
| Analog output 4 mA ... 20 mA: | no |
| Light spot: | 20 mm² |
| With communication interface RS-485: | no |
| Response time: | 2 ms |
| Reflector included in delivery: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| Max. switching distance: | 60 mm |
| Max. output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
Features
Design of the switching function
Other
Switching frequency
250 Hz
HAB
IRT-P212C73
Manufacturer
HAN
1063102
GTIN
4047084317750
Design of the switching output
PNP
Design of the electrical connection
Connector M12
Width of the sensor
20.6 mm
Suitable for security functions
No
Height of the sensor
99.2 mm
Length of the sensor
48.9 mm
IP protection)
IP67
Voltage type
DC
Ambient temperature
-40°C
Housing material
Plastic
