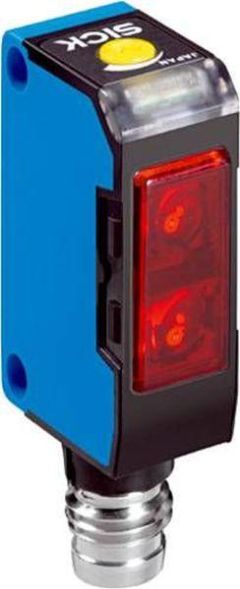

Miniature light barriers, W150, switching distance max.: 2 mm ... 100 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: connector M8, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -, included in delivery: mounting bracket BEF-W150-A
| Property | Value |
| Ambient temperature: | -25 to +55 °C |
| Design of the switching output: | PNP |
| With restart lock: | no |
| Material of the housing: | Plastic |
| Switching frequency: | 1000 Hz |
| Width of the sensor: | 10 mm |
| With communication interface RS-232: | no |
| With communication interface DeviceNet: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface INTERBUS: | no |
| Design of the electrical Connection: | Connector M8 |
| Button function: | light/dark switching |
| Length of sensor: | 18 mm |
| Equipment protection class: | Protection class 2 |
| With analog communication interface: | no |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Triangulation: | Background suppression |
| Analog output 0 V ... 10 V: | no |
| With monitoring function of downstream devices: | no |
| With communication interface PROFIBUS: | no |
| Suitable for safety functions: | no |
| With communication interface CANOpen: | no |
| With communication interface AS-Interface: | no |
| Housing design: | Cuboid |
| With other Analog output: | no |
| Pre-failure warning: | no |
| Height of the sensor: | 28 mm |
| Design of the switching function: | other |
| Material of the optical surface: | plastic |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With RS-485 communication interface: | no |
| Reaction time: | 0.5 ms |
| Reflector included in delivery: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. switching distance: | 100 mm |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
Features
Design of the switching function
Other
Switching frequency
1000 Hz
HAB
WT150-P460 with background output
Manufacturer
HAN
6011050
GTIN
4047084102707
Design of the switching output
PNP
Design of the electrical connection
Connector M8
Rated control supply voltage Us at DC
10 to 30 V
Width of the sensor
10 mm
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
28 mm
Length of the sensor
18 mm
IP protection)
IP67
Voltage type
DC
Ambient temperature
-25 to +55 °C
Housing material
Plastic
