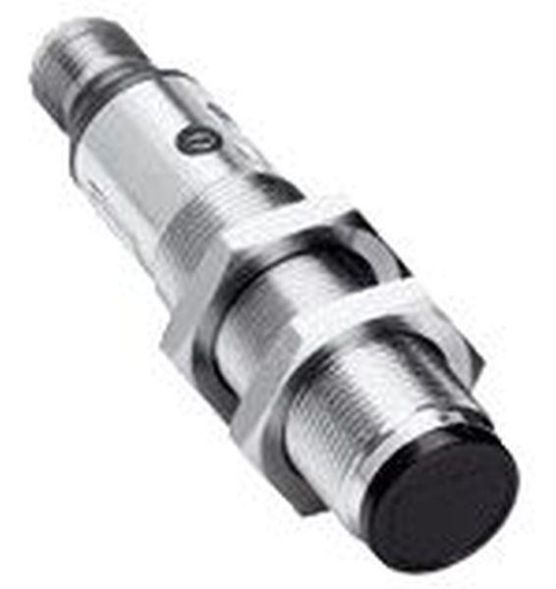

Round light barriers, V18, max. switching distance: 0.05 m ... 3.7 m, sensor principle: reflection light barrier, switching output: PNP, switching type: dark switching, connection type: connector M12, 4-pin, light transmitter: LED, setting: potentiometer, communication interface: -
| Property | Value |
| Rated switching distance: | 50 mm |
| Max. switching distance: | 3700 mm |
| Max. Output current: | 100 mA |
| Button function: | dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 18 mm |
| Width of sensor: | 18 mm |
| Length of sensor: | 78 mm |
| Reaction time: | 2 ms |
| Switching frequency: | 250 Hz |
| Laser protection class: | other |
| Voltage type: | DC |
| Housing material: | metal |
| With SSI communication interface: | no |
| With AS-Interface communication interface: | no |
| With time function: | no |
| With DeviceNet communication interface: | no |
| With INTERBUS communication interface: | no |
| With analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With PROFIBUS communication interface: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light unpolarized |
| Material of the optical surface: | Plastic |
| With communication interface RS-422: | no |
| With communication interface RS-232: | no |
| Design of the electrical connection: | M12 connector |
| Design of the switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| Housing design: | Smooth cylinder |
| Ambient temperature: | -25 °C |
| With monitoring function of downstream devices: | no |
| Pre-failure warning: | no |
| With restart lock: | no |
Features
Switching frequency
250 Hz
HAB
VL18-3P3240
Manufacturer
HAN
6013545
GTIN
4047084110849
Design of the switching output
PNP
Design of the electrical connection
Connector M12
Width of the sensor
18 mm
Suitable for security functions
No
Housing design
Cylinder smooth
Height of the sensor
18 mm
Length of the sensor
78 mm
IP protection)
IP67
Voltage type
DC
Ambient temperature
-25°C
Housing material
Metal
