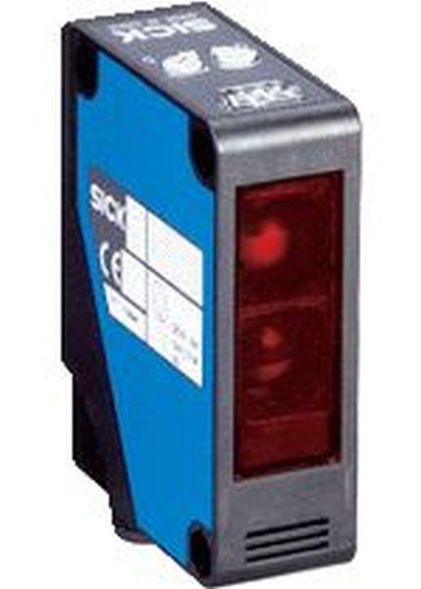

MultiTask light barriers, PowerProx, sub-product family: WTT280L-2 Long Range, switching distance max.: 200 mm ... 4,000 mm, 200 mm ... 3,000 mm, sensor principle: reflection light sensor, detection principle: background suppression, switching output: PNP, switching type: light/dark switching, connection type: connector M12, 5-pin, analog output: -, communication interface: -
| Property | Value |
| Ambient temperature: | -10 °C |
| Design of the switching output: | PNP |
| With restart lock: | no |
| Housing material: | Plastic |
| Switching frequency: | 1000 Hz |
| Width of sensor: | 23.5 mm |
| With communication interface RS-232: | no |
| With communication interface DeviceNet: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface INTERBUS: | no |
| Design of the electrical connection: | Connector M12 |
| Button function: | light/dark switching |
| Length of the sensor: | 55.8 mm |
| Equipment protection class: | Protection class 3 |
| With analog communication interface: | no |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Analog output 0 V ... 10 V: | no |
| With monitoring function of downstream devices: | no |
| With PROFIBUS communication interface: | no |
| Suitable for safety functions: | no |
| With CANOpen communication interface: | no |
| With AS-Interface communication interface: | no |
| Housing design: | Cuboid |
| With other analog output: | no |
| Pre-failure warning: | no |
| Laser protection class: | Class 1 |
| Height of the sensor: | 76 mm |
| Design of the switching function: | other |
| Material of the optical surface: | Plastic |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| Light spot: | 12 mm² |
| With communication interface RS-485: | no |
| Reaction time: | 0.5 ms |
| Reflector included in delivery: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Max. switching distance: | 200 mm |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
Features
Design of the switching function
Other
Switching frequency
1000 Hz
HAB
WTT280L-2P2536
Manufacturer
HAN
6048062
GTIN
4047084241512
Design of the switching output
PNP
Design of the electrical connection
Connector M12
Width of the sensor
23.5 mm
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
76 mm
Length of the sensor
55.8 mm
IP protection)
IP67
Voltage type
DC
Ambient temperature
-10°C
Housing material
Plastic
