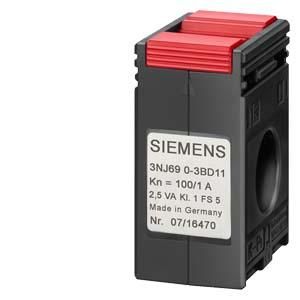

Accessories for load break switches with fuses, strip design, plug-in current transformer 100/1A, class 0.5, calibrated, feed-through opening 14mm. The load break switches with fuses 3NJ6 in strip design. The plug-in load break switches with fuses 3NJ6 are installed wherever as many cable ducts as possible for power distribution have to be accommodated in the smallest possible space in low-voltage distributors. They can be easily installed in all commercially available switch cabinets. The load break switches with fuses 3NJ6 are available for rated continuous currents from 160 A to 630 A. The Siemens load break switches with fuses 3NJ6 are characterized above all by: 1. Modular, compact design. 2. Voltage levels up to 690 V AC and 440 V DC. 3. Simple and economical installation thanks to plug-in contact on the supply line. 4. Voltage-free fuse replacement. 5. Compliance with the provisions of IEC EN 60947-3. 6. High level of personal protection and maintenance-free. 7. Clear switch position indicator. 8. Flexibility thanks to accessories that can be retrofitted at any time. www.siemens.de/schaltgeraete. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
| Property | Value |
| Version: | other |
| Primary rated current In: | 100 A |
| Number of primary inputs: | 1 |
