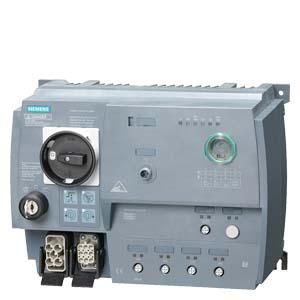

SIRIUS motor starter M200D AS-i communication: AS-Interface direct starter Basic mechanically switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 180 V DC 2DI AS-i + 2DI / 1DO on the device Han Q4/2 - Han Q8/0 with manual on-site operation and key switch Motor starter SIRIUS M200D for starting, monitoring and protecting motors and consumers for use in the field, e.g. in conveyor technology. The robust motor starters with a high degree of protection for AS-Interface are easy to configure and can be installed, commissioned and replaced in the event of servicing quickly and error-free thanks to the modular starter concept and pre-assembled cables. The integration of associated sensors is supported. The use of the devices increases system availability thanks to a comprehensive diagnostic concept and sophisticated system monitoring. The Motor Starter ES software is available for project planning, commissioning, operation and diagnostics. The motor starters are approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4ready.Available as direct or reversing starters with various motor current ranges, optionally electromechanical or electronic switching, optionally with brake control or local manual on-site control device.An extensive range of accessories suitable for all M200D motor starters is available, e.g. pre-assembled cables.SIRIUS M200D - The robust motor starter for decentralized drive solutions.
| Property | Value |
| Overload release current setting: | 0.15 to 2 A |
| Voltage type for actuation: | DC |
| Rated operating power at AC-3, 400 V: | 0.75 kW |
| Rated operating current Ie: | 2 A |
| Rated control supply voltage Us at DC: | 20.4 to 24 V |
| With short-circuit release: | yes |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for CAN: | no |
| Supports protocol for ASI: | yes |
| Supports protocol for Foundation Fieldbus: | no |
| Conditional rated short-circuit current, allocation type 2, 230 V: | 50000 A |
| Supports protocol for Data Highway: | no |
| Supports protocol for MODBUS: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for SERCOS: | no |
| Temperature compensated overload protection: | yes |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for other bus systems: | no |
| Supports protocol for PROFINET CBA: | no |
| Rated operating current at AC-3, 400 V: | 2 A |
| Supports protocol for SUCONET: | no |
| DIN rail mounting possible: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for LON: | no |
| Supports protocol for DeviceNet Safety: | no |
| Ambient temperature, upper limit without restrictions: | 40 °C |
| Conditional rated short-circuit current, allocation type 1, 480 Y/277 V: | 50000 A |
| Rated operating power at AC-3, 230 V, 3-phase: | 0.37 kW |
| Conditional rated short-circuit current, allocation type 2, 400 V: | 50000 A |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Rated power, 460 V, 60 Hz, 3-phase: | 0.75 kW |
| With transformer: | no |
| Number of command points: | 2 |
| Suitable for EMERGENCY STOP: | no |
| Assignment type according to IEC 60947-4-3: | Class 2 |
| Number of indicator lights: | 12 |
| External reset possible: | yes |
| With fuse: | yes |
| Width: | 294 mm |
| Height: | 215 mm |
| Depth: | 159 mm |
