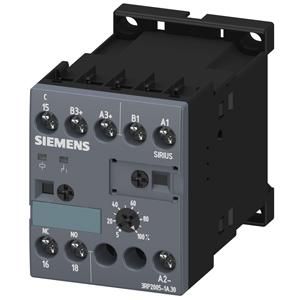

Siemens 3RP2005-1AQ30 time relay electronic 1W

Description

Features

Reviews

Time relay, electronic multifunction, 8 functions 1 changeover contact AC/DC 24 V, AC 100 to 127 V at AC 50/60 Hz 0.05 s to 100 h Width 45 mm Screw connection Time relay SIRIUS 3RP20, multifunction, for all time-delayed switching operations in control, starting, protection and regulating circuits. Wide application range due to diverse functions in the smallest space. Can be used worldwide thanks to international approvals and wide voltage range. The 3RP time relays are available as single or multifunction time relays with semiconductor output or as electromechanical relays with and without positive guidance, each with different connection technologies. SIRIUS Relay - a program for all cases.

Property	Value
Number of outputs, delayed, changeover:	1
Can be plugged onto contactor:	no
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 100 s
Rated control supply voltage Us at AC 50 Hz:	100 to 127 V
Rated control supply voltage Us at AC 60 Hz:	100 to 127 V
Rated control supply voltage Us at DC:	24 V
Width:	45 mm
Depth:	73 mm
Height:	57 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
On-passing function:	yes
Off-passing function:	yes
Star/delta function:	no
Pulse-forming function:	yes
Flashing function starting with pause, fixed time:	yes
Flashing function starting with pulse, fixed time:	no
Function clocked starting with pause, variable:	no
Function clocked starting with pulse, variable:	no
With semiconductor output:	no
