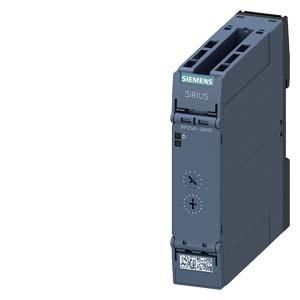

Time relay, electronic, off-delayed without control signal or fail-safe, make-on, zero-voltage safe, 7 time ranges 0.05...600 s AC/DC 12-240 V at AC 50/60 Hz, 2 changeover contacts with LED, spring-loaded connection (push-in) Time relay SIRIUS 3RP25, off-delayed without control signal, zero-voltage safe, make-on, for various time-delayed switching processes in control, starting, protection and regulating circuits, e.g. for fan run-on control. Wide range of applications thanks to diverse functions in the smallest of spaces. Can be used worldwide thanks to international approvals and wide voltage range. The innovative housing concept in industrial design offers labeled cover flaps, removable connection terminals and much more. Available as a single or multi-function time relay with semiconductor output or as an electromechanical relay with and without positive guidance, each with different connection technologies. The 3RP25 time relays replace the proven 3RP15 series. SIRIUS Relay - a program for all cases.
| Property | Value |
| Number of outputs, delayed, changeover: | 2 |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Type of voltage for actuation: | AC/DC |
| Time range: | 0.05 to 600 s |
| Rated control supply voltage Us at AC 50 Hz: | 12 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 12 to 240 V |
| Rated control supply voltage Us at DC: | 12 to 240 V |
| Width: | 22.5 mm |
| Depth: | 90 mm |
| Height: | 100 mm |
| With plug-in base: | yes |
| Remote control possible: | no |
| Suitable as a remote control: | no |
| Delayed response function: | no |
| Delayed release function: | yes |
| Passing on/off function: | yes |
| Passing off/on function: | no |
| Star/delta function: | no |
| Pulse-forming function: | no |
| Flashing function starting with a pause, Fixed time: | no |
| Function flashing starting with pulse, fixed time: | no |
| Function clocking starting with pause, variable: | no |
| Function clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
