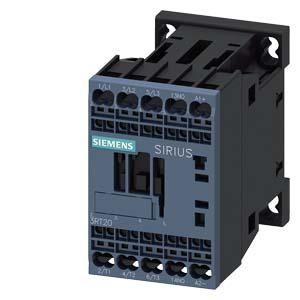

Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NO, DC 24 V 3-pole, size S00 spring-loaded connection Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the SIRIUS modular system with its optimally coordinated products. They impress with their high performance combined with a compact design and high contact reliability. They can be combined in many ways with other components in the load feeder. Many of the device combinations are factory-tested. The contactors offer the optimal connection to the controller for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your setup. The front connections enable easy wiring. The 3RT2 contactors are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. They are available in various sizes and in a wide power range in AC and DC operation. In addition to screw connection technology, the devices are also available with spring-loaded connections for quick, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, etc., is standard for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 feed-in system significantly reduce the wiring effort. The 3RT2 power contactors replace the proven 3RT1 series (up to 55 kW). Simple, efficient, always up-to-date - the SIRIUS modular system.
| Property | Value |
| Number of normally open contacts as main contacts: | 3 |
| Number of auxiliary contacts as normally open contacts: | 1 |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Rated operating current Ie at AC-1, 400 V: | 22 A |
| Rated operating current Ie at AC-3, 400 V: | 12 A |
| Rated operating current Ie at AC-4, 400 V: | 8.5 A |
| Type of voltage for actuation: | DC |
| Rated control supply voltage Us at DC: | 24 V |
| Suitable for series installation: | yes |
| Rated operating power NEMA: | 5.516240624 kW |
