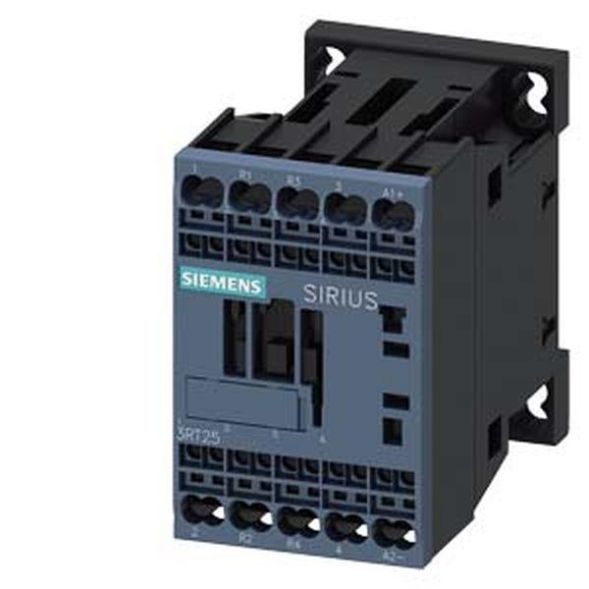

Contactor, 2 NO + 2 Oe, AC-3, 5.5 kW, DC 48 V, 4-pole, 2 NO + 2 Oe, size S00, spring-loaded connection with diode integrated SIRIUS 3RT25 contactor for pole switching in hoist motors or for switching two separate loads. The 3RT25 contactors are part of the SIRIUS modular system with its optimally coordinated products. They impress with their high performance combined with a compact design and high contact reliability. They can be combined in many ways with other components in the load feeder. Many of the device combinations are factory-tested. The contactors offer the optimal connection to the controller for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your setup. The front connections enable easy wiring. The 3RT25 contactors are climate-resistant and approved worldwide (eg IEC and UL/CSA). They are available in various sizes and in a wide power range in AC and DC operation. In addition to screw connection technology, the devices are also available with spring-loaded connections for quick, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, etc., is standardized for all sizes. Simple, efficient, always up-to-date - the SIRIUS modular system.
| Property | Value |
| Number of normally closed contacts as main contacts: | 2 |
| Number of normally open contacts as main contacts: | 2 |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Rated operating current Ie at AC-1, 400 V: | 22 A |
| Rated operating current Ie at AC-3, 400 V: | 12 A |
| Voltage type for actuation: | DC |
| Rated control supply voltage Us at DC: | 48 V |
| Suitable for series installation: | yes |
| Rated operating power NEMA: | 3.677493749 kW |
