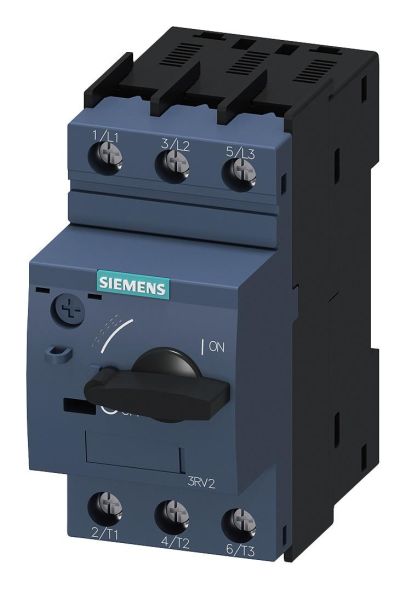

Siemens 3RV2023-4DA10 screw connection 25A BG S0 circuit breaker

Brand:Siemens
To compare
To favorites
SKU:774972
Siemens 3RV2023-4DA10 screw connection 25A BG S0 circuit breaker
HAB
Manufacturer
HAN
GTIN
In stock
€98.41
11
Shipping information
International shipping DHL
Рассчитываем стоимость доставки...
DPD
Рассчитываем стоимость доставки...
UPS
Рассчитываем стоимость доставки...
Description
Features
Reviews

Circuit breaker size S0 for motor protection, CLASS 10 A release 20...25 A N release 325 A screw connection Switching capacity 30 kA at 600 V according to UL/CSA SIRIUS 3RV2 circuit breaker for motor protection for safe shutdown in the event of a short circuit and protection of the load and system against overload, as well as for safe disconnection of the system from the mains. , The compact and climate-resistant circuit breakers are optimized for use in load feeders due to their low waste heat, and of course also for IE3/IE4 motors and equally for switching direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in potentially explosive applications (ATEX or IEC Ex) are a matter of course. , Device variants are available for motor protection (also with overload relay function), system protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY STOP switches and for use in IT networks. They are available with screw or spring-loaded connections for a quick, maintenance-free and vibration-proof connection, and optionally with a built-in auxiliary switch. , The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches, etc., is standardized for all sizes. The use of various power feed options, such as the associated SIRIUS 3RV29 feed system, significantly reduces the main circuit wiring. , The 3RV2 circuit breakers replace the proven 3RV1 series. , Simple, efficient, always up-to-date - the SIRIUS modular system.

Property Value
Number of poles: 3
Rated operating voltage: 690 V
Rated continuous current Iu: 25 A
Overload release current setting: 18 to 25 A
Phase failure sensitive: yes
Protection class (IP): IP20
Width: 45 mm
With integrated auxiliary switch: no
With integrated undervoltage release: no
Height: 97 mm
Depth: 97 mm
Features
HAB
Manufacturer
HAN
GTIN
Rated operating voltage
Rated continuous current Iu
Width
Height
With integrated auxiliary switch
With integrated undervoltage release
Sensitive to phase failure
Number of poles
IP protection)
Depth
Overload release current setting
