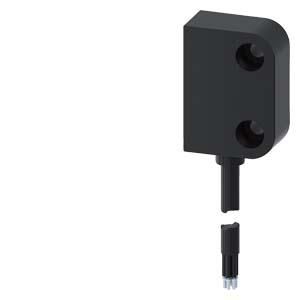

Magnetic switch switching element, rectangular, small 26 x 36 mm, for door hinge on the left, switching elements: safety contacts 2Oe signaling contact 1Oe with 3 m connection cable without LED, the matching switching magnet 3SE6714-3CA switching magnet 3SE6714-3CA or offset by 90° 3SE6724-3CA magnetic switch SIRIUS 3SE66 for space-saving, tamper-proof protective grille, flap or protective door monitoring. The contactless coded devices are small and compact and therefore suitable for confined spaces. They meet the highest safety requirements according to PL e or SIL 3. Their wear-free switching guarantees a long service life. They are available in various shapes and sizes. Different combinations of switching elements and cable lengths, versions with LEDs for quick diagnosis and plugs for quick connection are available. Spacers and various couplings with connecting cables in different lengths are available as accessories. Safety is a SIRIUS business.
| Property | Value |
| Suitable for safety functions: | yes |
| Length of sensor: | 13 mm |
| Height of sensor: | 36 mm |
| Width of sensor: | 26 mm |
| Performance level according to EN ISO 13849-1: | Level e |
| Number of contact outputs with signaling function: | 1 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Secured switching distance OFF: | 15 mm |
| Secured switching distance ON: | 5 mm |
| Ambient temperature: | -25 to 70 °C |
| Cross-circuit/short-circuit detection possible: | yes |
| Type of voltage: | DC |
| With monitoring function downstream Devices: | no |
| SIL according to IEC 61508: | 3 |
