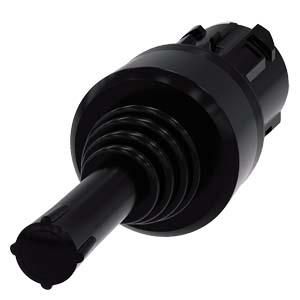

Coordinate switch, 22 mm, round, plastic, black, 2 switch positions, vertical latching, without mechanical locking SIRIUS ACT coordinate switch for simple navigation tasks. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic. The innovative snap-on concept simplifies assembly so much that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated. Thanks to the consistently high protection class, the robust devices are suitable for industrial use and outdoor use. Cleaning with a high-pressure jet is even possible. Neither dust, oil nor aggressive alkalis can disrupt reliable operation. In addition to the standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility. The graphical online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available. Available versions: 2/4 switching positions, latching/momentary actuation. Note: Please order individual devices, holders and modules separately. SIRIUS ACT - Performance in Action when commanding and reporting. Simply installed, simply strong, simply perfect.
| Feature | Value |
| Number of actuation directions: | 2 |
| Joystick length: | 71.3 mm |
| With retraction to zero position: | no |
| Analog output signal configurable: | no |
| Central fastening, hole diameter: | 22.3 mm |
| Locking in zero position: | no |
| Code generator: | no |
| With front ring: | yes |
