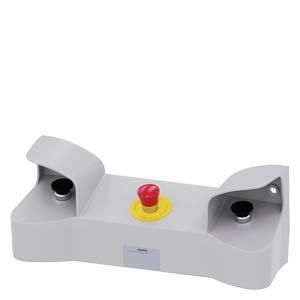

Two-hand control panel for control devices, 22 mm, round, housing material metal, housing top gray, 3 command points metal, standard equipment: 2 MUSHROOM PUSHBUTTON BLACK 40MM, 2x1S+1Oe, screw connection, 1 EMERGENCY STOP red, 40 mm, 2Oe, screw connection, two-hand control panel SIRIUS ACT for machines and systems with a higher risk potential (e.g. for increased safety on presses, punches) in accordance with EN 574. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic. The innovative snap-on concept simplifies assembly to such an extent that only one hand and no special tools are required. Groove-free holes are sufficient for mounting holes, as 100% anti-twist protection is already integrated. Thanks to the consistently high protection class, the robust devices are suitable for industrial use and for outdoor use. Cleaning with a high-pressure jet is even possible. Neither dust, oil nor aggressive alkalis can disrupt reliable operation. In addition to the standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring effort, minimizes sources of error and gives you more flexibility. The graphic online configurator provides convenient support when selecting and ordering individual devices, housings and labels. Comprehensive documentation (e.g. manual, 3D data, connection diagram) is available. Available versions: plastic/metal, empty housing/pre-assembled. SIRIUS ACT - Performance in Action when commanding and reporting. Simply assembled, simply strong, simply perfect.
| Property | Value |
| Number of contacts as normally closed: | 4 |
| Number of contacts as normally open: | 2 |
| Pre-wiring on terminal block: | no |
| Suitable for EMERGENCY STOP: | yes |
| With switch lock: | no |
| Version as kit: | no |
| Painting for Two-hand control: | yes |
| With foot: | no |
| Step switching: | no |
